Our PCC Panels support up to 6300 Amps with CPRI certification for short circuit withstand capacity of 65 kA/1 sec.
Catalog Download
LT Panels
.png)

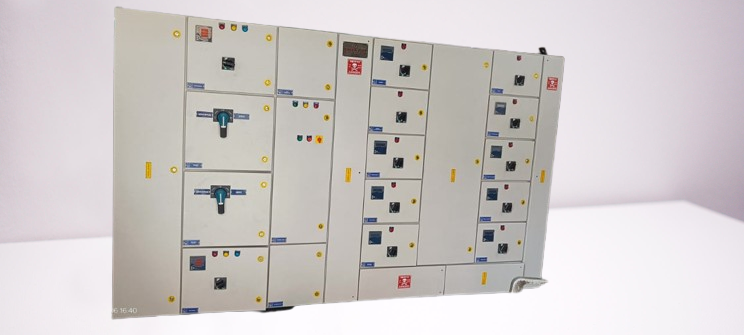

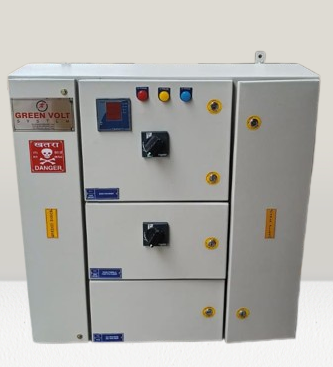

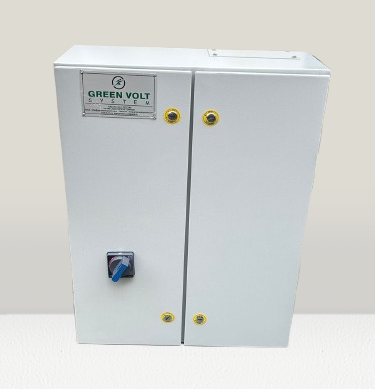

LT Panels
Green Volt System is one of the trusted LT Panel Manufacturers in India. Our LT Panels are engineered to ensure safe, reliable, and efficient power distribution. Designed for low power consumption and cost-effectiveness, our panels are suitable for diverse industrial, commercial, and infrastructure applications.
About LT Panels
LT (Low Tension) Panels are electrical distribution boards that receive power from generators or transformers and distribute it to various devices and sub-distribution boards. Built with premium-grade components, our LT Panels ensure optimal performance, safety, and durability.
Types of LT Panels We Manufacture
01
Power Control Center (PCC)
Our PCC Panels offer current carrying capacity up to 6300 Amps with short circuit type test certification of 65 kA/1 sec from CPRI. Integrated with advanced safety protections, these panels meet all prevailing industry standards. A special feature includes an Energy Management System that records one month of energy data for all feeders.
02
Automatic Power Factor Correction Panel (APFC)
Our APFC Panels are available with Thyristor-controlled or Contactor-based operation, depending on load nature. To overcome harmonic effects, we integrate detuned reactors. Supplied with APP/MPP heavy-duty capacitor banks, these panels help minimize energy wastage and reduce heavy penalty charges by electricity boards.
03
Current Transformer (CT) Panels
Current Transformers are the primary measuring devices for protection and metering in power systems. We offer CTs with metering accuracy classes 0.1, 0.2, 0.55, 0.5, and 1.0, and protection classes 5P20 & 10P10. Options include:
- Indoor Cast Resin CTs for switchgears up to 33 kV
- Bus Duct CTs up to 33 kV
04
Potential Transformer (PT) Panels
Potential Transformers provide electrical isolation and step down high voltage to proportional lower values (63.5V, 100V, 110V, or as per requirement). We supply PTs with accuracy classes 0.1, 0.2, 0.5, and 1.0 for metering, and 3P for protection. Options include:
- Indoor Cast Resin & Oil-Cooled PTs
- Outdoor Oil-Cooled PTs
Applications
- Industrial Units: Manufacturing, steel plants, mining, process industries.
- Commercial: Office complexes, malls, IT parks, hotels.
- Infrastructure: Railways, airports, seaports, metro projects.
- Utilities & Power: Substations, renewable energy, power distribution.
-
What is the current capacity of PCC Panels?
-
How does an APFC Panel help in reducing energy cost?By maintaining a high power factor and reducing reactive power, APFC Panels minimize energy wastage and avoid penalty charges from electricity boards.
-
Do you offer both indoor and outdoor CT/PT Panels?Yes, we provide both indoor cast resin and outdoor oil-cooled CT/PT Panels as per customer requirements and voltage class.
