1 phase air cooled servo voltage stabilizer

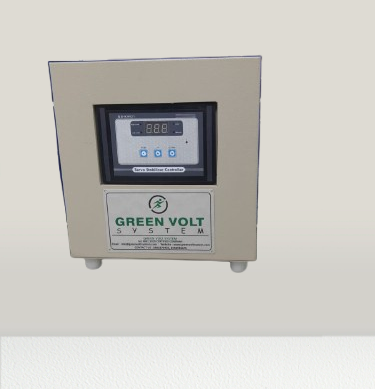

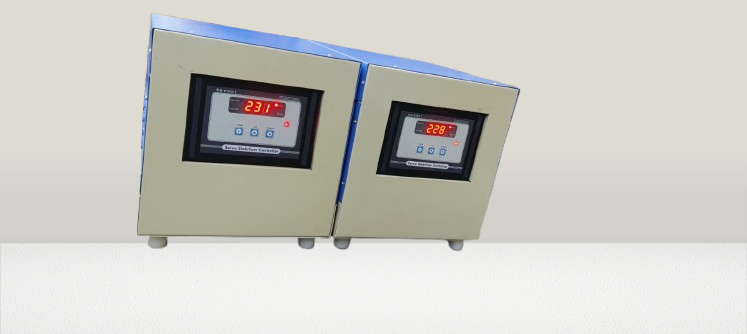

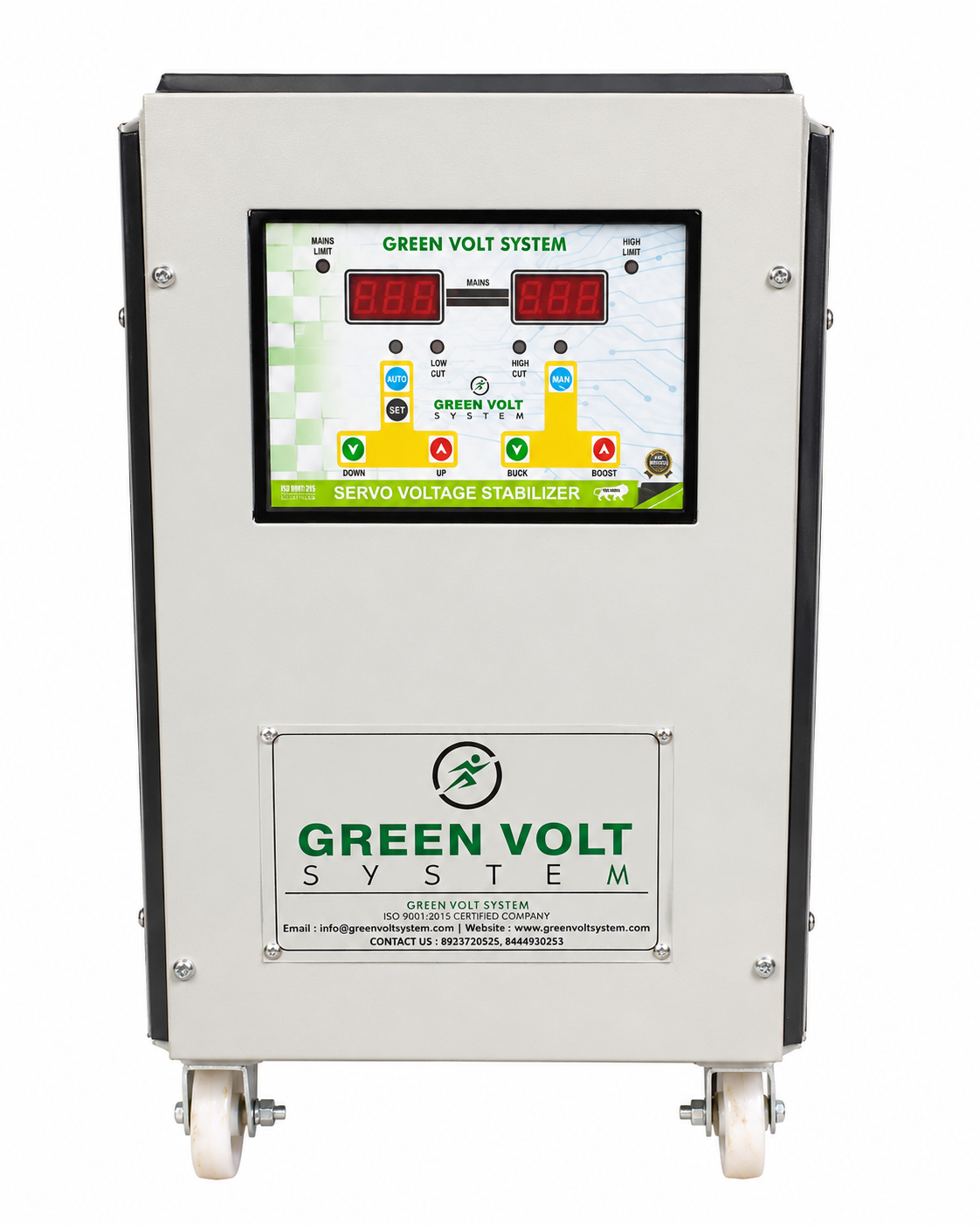

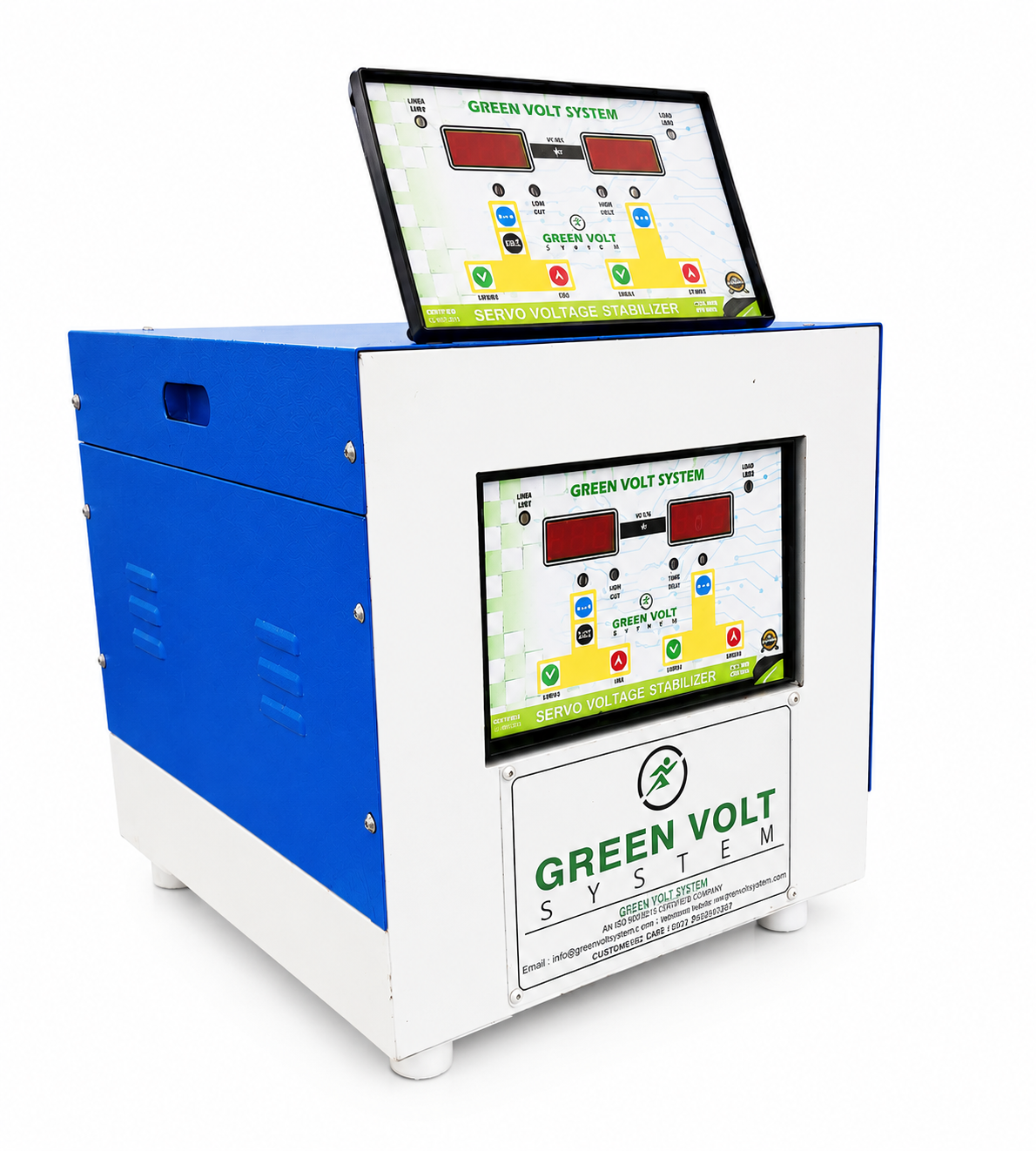

1 Phase Air Cooled Servo Voltage Stabilizer
Single Phase Air-Cooled Servo Voltage Stabilisers are designed to deliver consistent and stable voltage for sensitive appliances and equipment. The air-cooled system ensures effective heat dissipation, making the stabiliser compact, lightweight, and low-maintenance. These stabilisers are ideal for homes, offices, shops, and small-scale industries.
Built with advanced servo motor technology, they provide precise regulation even during severe voltage fluctuations, protecting devices from premature failure and ensuring long-lasting performance. Their energy-efficient design reduces power consumption and operational costs.
Key Benefits
- Safeguards sensitive appliances and electronics from voltage instability.
- Increases life of ACs, refrigerators, TVs, medical instruments, and computers.
- Protection against High/Low Voltage, overload, and short circuits.
- Compact air-cooled design, lightweight and easy to maintain.
- Saves energy and lowers electricity expenses.
Product USPs / Salient Features
- Advanced microcontroller-based regulation system.
- Digital LCD display for Input/Output Voltage, Frequency, and Load.
- User-settable output voltage and cut-off settings.
- High correction speed with precise voltage control.
- Efficiency ≥ 98% with minimal waveform distortion.
- Overload and short-circuit protection built-in.
Technical Specifications
| Type of Stabiliser | Single Phase Stabiliser |
|---|---|
| Construction | Indoor Purpose |
| Design | Servo Stabiliser with Output Sensing Feedback |
| Cooling | Air Cooled |
| Servo Motor Type | AC Synchronous Motor |
| Input Voltage Range | 170V – 270V / 140V – 300V |
| Input Frequency | 47 Hz – 53 Hz |
| Output Voltage | 230 V ±1% |
| Correction Speed | > 35 V/sec |
| Response Time | 10 ms |
| Efficiency | ≥ 98% |
| Protections | Over/Under Voltage, Overload, Short Circuit |
| Display | Digital LCD with I/P & O/P Voltage, Hz, Amps |
| Event Recorder | Trip & Fault Analysis |
| Bypass | Built-in (for select ratings) |
| Surge Protection | Optional SPD |
| Ambient Temp. | 0°C to 50°C |
| Rating | 1 kVA to 20 kVA |
| Standards | IS:9815 |
Custom Design Options
- Ratings up to 20 kVA
- Wide or narrow input voltage range options
- Customizable output voltage settings
- Outdoor-compatible models available
Applications
- Homes, Apartments, Villas
- Offices, Shops, Small Businesses
- Clinics, Medical Labs, Diagnostic Centres
- Schools, Institutes, Training Centres
- Computers, Refrigerators, Air Conditioners, UPS Systems
