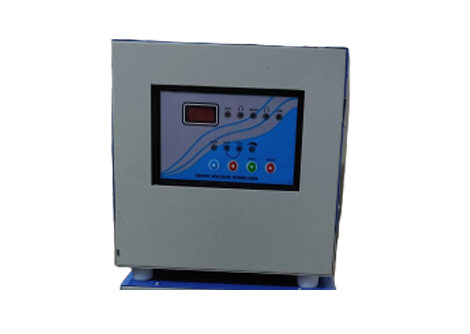

Single Phase Servo Stabilizer - Air Cooled

Green Volt System, manufacturer and supplier of single phase air cooled servo stabilizer that are used basically to provide a constant output voltage with accurate stability. These are suitable for most of the electronics and electrical applications. Our stabilizers are manufactured with premium quality raw materials to make servo motors, buck-boost transformer, dimmer, shaft, and other important components. We have experienced technicians and staff to assemble the units. We follow national and international standards to manufacture them. We even perform various quality control tests to provide reliable, efficient, and high-end performance.

Features

  • Digital Control Card
  • Overload & short circuit protection
  • High Low cut-off
  • Constant Output Voltage

Rating Available3 KVA to 30 KVA

Input Voltage Range110v-270v, 140v-270v, 170v-270v, 190v-270v

ApplicationsCNC Machines, Hospitals, Printing Machines, Hotels & Restaurants etc.

TECHNICAL SPECIFICATIONS

Rating 3 KVA to 30 KVA
Input Voltage Range 110V-270V, 140V-270V, 170V-270V, 190V-270V or custom built
Output Voltage Range 230V
Output Voltage Accuracy +- 1%
Frequency 50 Hz
Wave Form Distortion NIL
Correction Speed 25 V/Sec
Correction Methods Step less Correction Using Variac
Cooling Air Cooling
Efficiency Better Than 98%
Control Digital
Duty Cycle 100%
Operation Auto / Manual
Operating Temperature -15°C to 45°C
